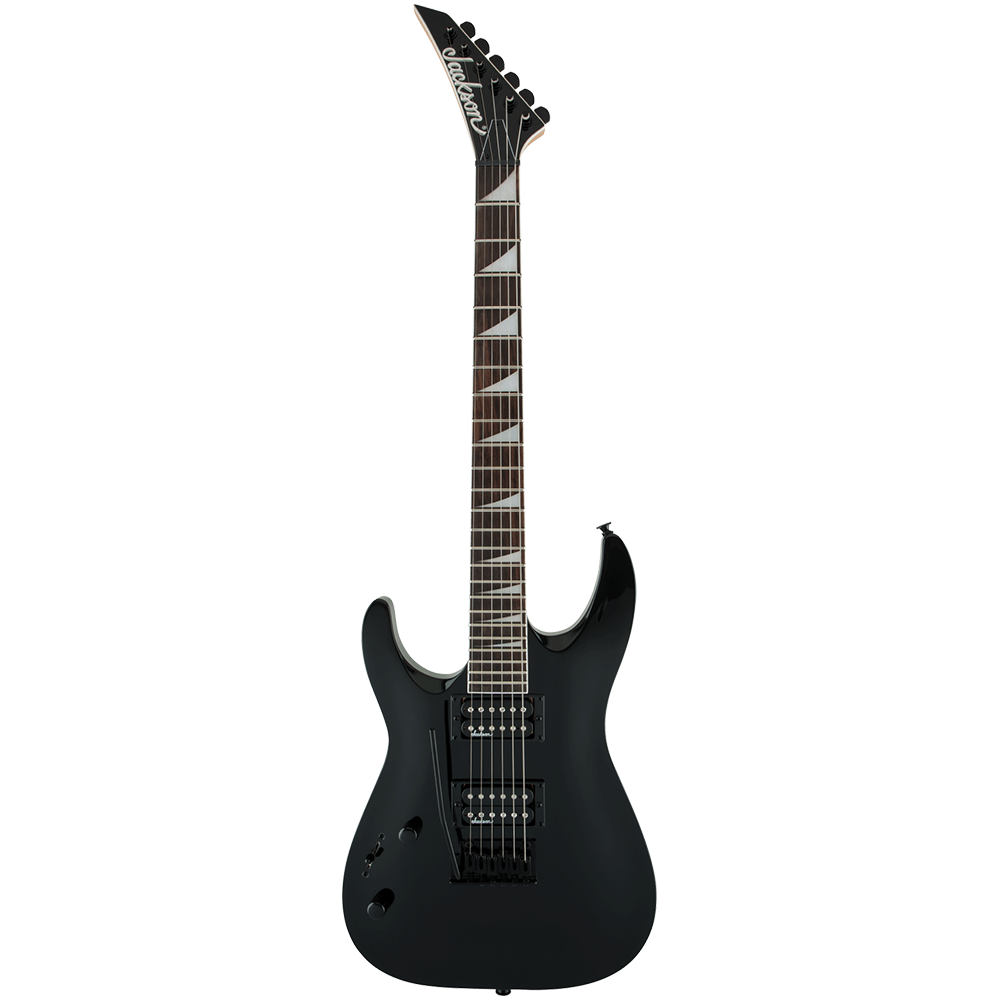

Jackson JS Series Dinky Arch Top JS22 DKA LH Black

Swift, deadly and affordable, Jackson® JS Series guitars take an epic leap forward, making it easier than ever to get classic Jackson tone, looks and playability without breaking the bank.

Crafted for the southpaw, the JS Series Dinky® Arch Top JS22 DKA LH has a poplar body with arched top, bolt-on maple speed neck with graphite reinforcement and a 12”-16” compound-radius bound amaranth fingerboard with 24 jumbo frets and pearloid sharkfin inlays.

A pair of Jackson high-output humbucking pickups with ceramic magnets cranks out clear tone with plenty of girth, and can be shaped with a three-way toggle switch and single volume and tone controls.

Delivering more for less, the JS22 DKA LH is available in Gloss Black and features all-black hardware including a synchronized fulcrum tremolo bridge, standard strap buttons and die-cast tuners.

ONE-PIECE BOLT-ON MAPLE NECK WITH GRAPHITE REINFORCEMENT AND SCARF JOINT
A type of neck constructed with a scarf joint for an angled back headstock, which in turn increases the tension behind the nut eliminating the need for string trees and/or string retainer bars. The bolt-on neck joins the neck to the body of the guitar with screws or bolts, allowing for more control, attack and sustain.

BODY

• BODY MATERIAL Poplar
• BODY FINISH Gloss
• BODY SHAPE Dinky

NECK

• NUMBER OF STRINGS 6
• NECK MATERIAL Maple
• NECK CONSTRUCTION Bolt-On with Graphite Reinforcement and Scarf Joint
• NECK BINDING White
• NECK FINISH Satin
• SCALE LENGTH 25.5" (64.77 cm)
• FINGERBOARD MATERIAL Amaranth
• FINGERBOARD RADIUS 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• NUMBER OF FRETS 24
• FRET SIZE Jumbo
• NUT MATERIAL Black Plastic
• NUT WIDTH 1.6875" (42.86 mm)
• POSITION INLAYS Pearloid Sharkfin
• TRUSS ROD Dual-Action
• TRUSS ROD NUT Truss Rod Adjustment at Nut

ELECTRONICS

• BRIDGE PICKUP Jackson® High-Output Humbucking
• NECK PICKUP Jackson® High-Output Humbucking
• CONTROLS Volume, Tone
• SWITCHING 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• CONFIGURATION HH

HARDWARE

• BRIDGE 2-Point Fulcrum Tremolo
• HARDWARE FINISH Black
• TUNING MACHINES Jackson® Sealed Die-Cast
• CONTROL KNOBS Dome-Style
• SWITCH TIP Black
• NECK PLATE Jackson

MISCELLANEOUS

• STRINGS Nickel Plated Steel (.009-.042 Gauges)

ACCESSORIES

• CASE/GIG BAG Optional Gig Bag (p/n 299-1512-106)
