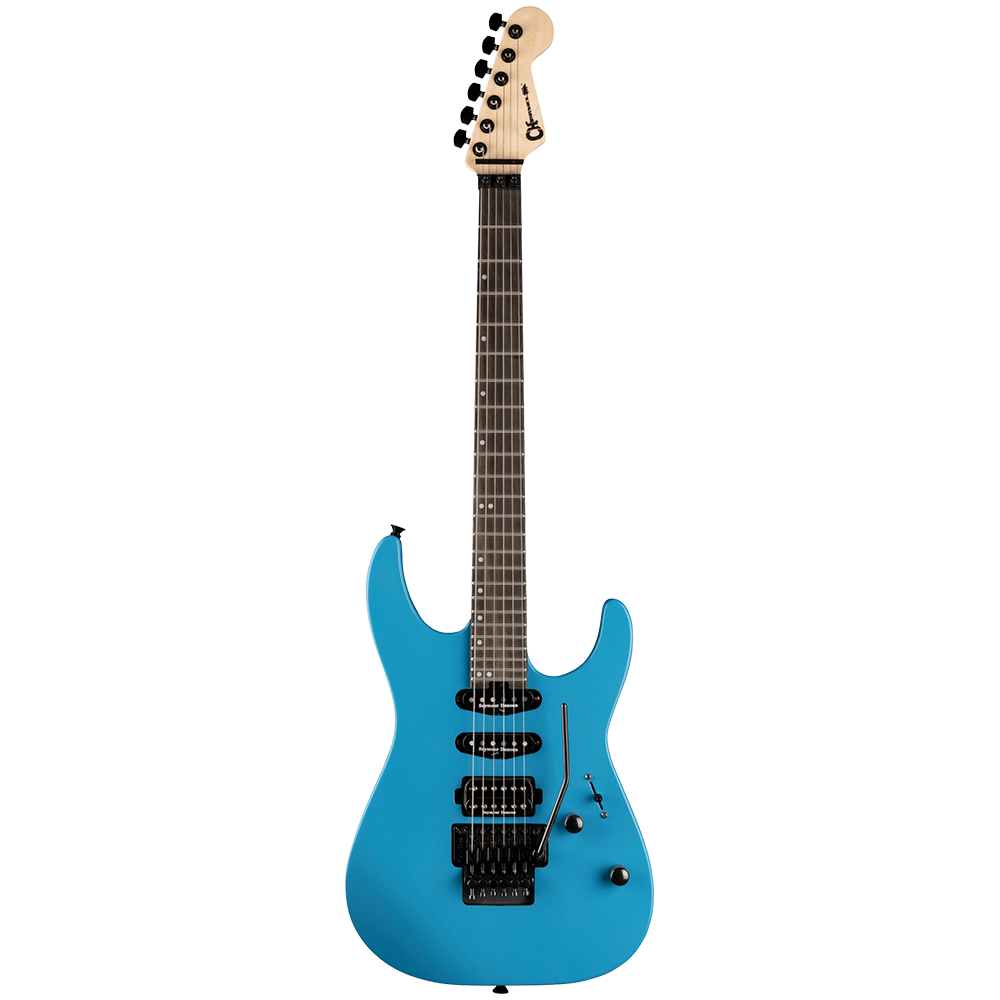

Charvel’s Pro-Mod DK24 HSS FR E Infinity Blue

Featuring a sculpted shredder's cut heel and scalloped lower back bout for maximum playing enjoyment, the alder Dinky® body is dressed in a bold Infinity Blue finish with black hardware.

The “speed” neck features a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, and a heel-mount truss rod adjustment wheel for quick and painless neck relief tweaks. Built for fast playing speeds, the 12”-16” compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo frets and offset white dot inlays.

An HSS pickup configuration consisting of a Seymour Duncan® Full Shred™ TB-10 bridge pickup, Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup hits with plenty of focused humbucker grit and springy vintage snap. Dial in the tonal spectrum that best suits your playing with five-way blade switching, single volume control (with 500K EVH® Bourns™ low friction potentiometer) and no-load tone control that operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through.

This modernized instrument is also equipped with a recessed Floyd Rose® 1000 Series double-locking tremolo bridge system for superior tuning stability and radical pitch-raising capability.

FEATURES

• ALDER DINKY™ BODY
• BOLT-ON MAPLE NECK WITH GRAPHITE REINFORCEMENT
• SCALLOPED LOWER BACK BOUT
• SHREDDER'S CUT HEEL
• 12"-16" COMPOUND RADIUS EBONY FINGERBOARD WITH ROLLED EDGES AND 24 JUMBO FRETS
• SEYMOUR DUNCAN® FULL SHRED™ SH-10B, SEYMOUR DUNCAN CUSTOM FLAT STRAT® SSL-6 & SEYMOUR DUNCAN CUSTOM FLAT STRAT SSL-6 RRWP PICKUPS
• HEEL-MOUNT TRUSS ROD ADJUSTMENT WHEEL
• FLOYD ROSE®1000 SERIES DOUBLE-LOCKING TREMOLO BRIDGE SYSTEM
• 5-WAY BLADE, VOLUME CONTROL WITH 500K EVH BOURNS® LOW FRICTION POTENTIOMETER & NO-LOAD TONE CONTROL

SPECS

GENERAL

• Model Number 2969433527
• Series Pro-Mod
• Color Infinity Blue
• Number of Strings 6
• Orientation Right-Hand

BODY

• Body Finish Gloss
• Body Shape Dinky®
• Body Material Alder

NECK

• Neck Material Maple
• Neck Construction Bolt-On with Graphite Reinforcement
• Neck Finish Hand-Rubbed Satin Urethane
• Neck Shape Speed Neck with Rolled Fingerboard Edges
• Neck Binding None - Rolled Fingerboard Edges
• Scale Length 25.5" (64.77 cm)
• Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material Ebony
• Number of Frets 24
• Fret Size Jumbo
• Nut Material Floyd Rose® 1000 Series Locking
• Nut Width 1.6875" (42.86 mm)
• Position Inlays Offset White Dot
• Side Dots White
• Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
• String Trees Floyd Rose® Retainer Bar
• Headstock Licensed Fender® Stratocaster®
• Neck Plate None - 4-Bolt Sculpted Heel

HARDWARE

• Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
• Hardware Finish Black
• Tremolo Arm Floyd Rose® 1000 Series Locking
• Tuning Machines Charvel®-Branded Die-Cast
• Pickguard None
• Control Knobs Dome-Style
• Switch Tip Black
• Saddle Height Wrench N/A

ELECTRONICS

• Bridge Pickup Seymour Duncan® Full Shred™ TB-10
• Middle Pickup Seymour Duncan® Flat Strat® SSL-6 Single-Coil
• Neck Pickup Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil
• Pickup Color Black
• Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
• Pickup Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup
• Pickup Configuration HSS

MISCELLANEOUS

• Strings Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons Standard
