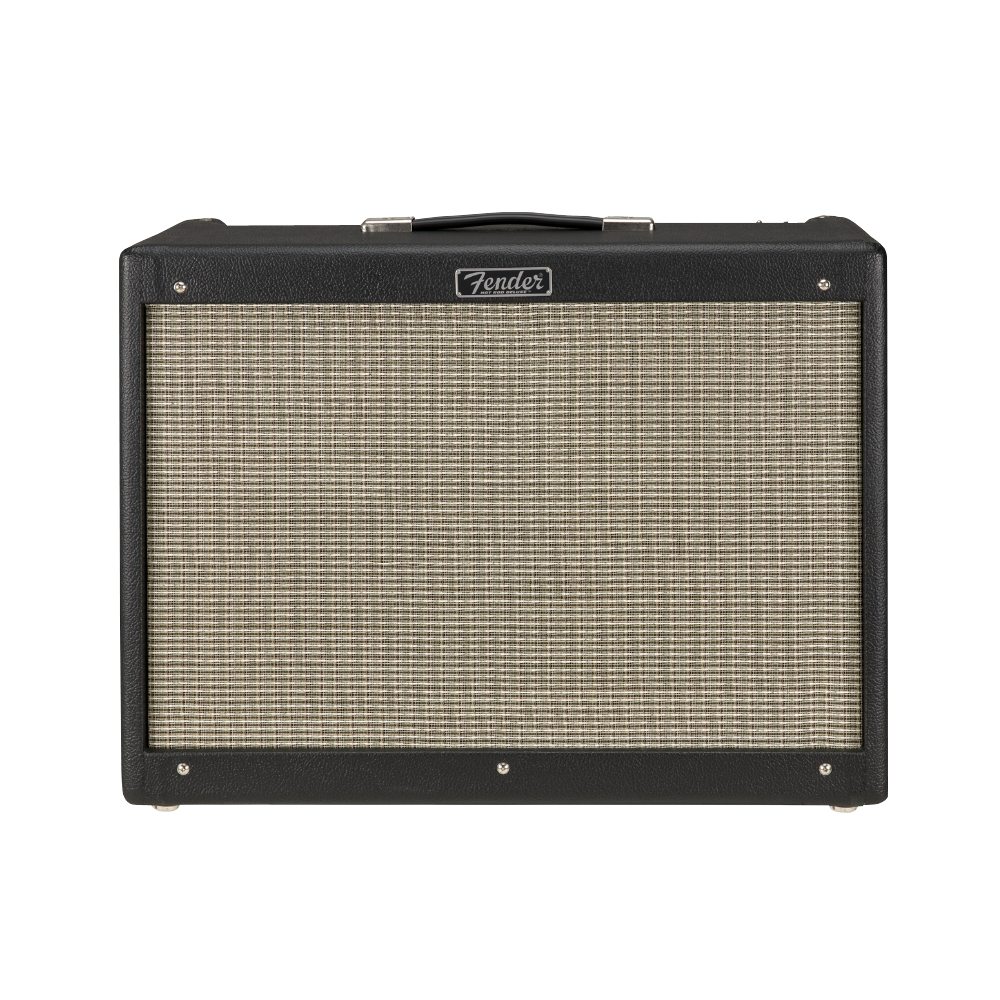

Fender Hot Rod Deluxe IV Guitar Amplifier

Color - Black, Model #: 2231204000

An updated version of the legendary amplifier that’s been the heart of many guitarists’ rigs, the Hot Rod Deluxe IV features modified preamp circuitry, smoother-sounding spring reverb and updated aesthetics that any player is sure to appreciate. A supercharged amp decked out with player-requested features, this scorching 40-watt 1x12" combo is ideal for guitarists who need hot-rodded power with performance to spare.

FEATURES

• 40 watts; Normal, Drive, and More Drive channels
• Celestion 12" A-Type speaker
• Modified preamp circuitry for increased overdriven note definition
• Spring reverb modified for improved smoothness
• Lightweight pine cabinet
• Includes 2-button footswitch and cover

HIGHLIGHTS

MODIFIED PREAMP CIRCUITRY
The modified preamp circuitry offers greater tonal definition and clarity, even when pushing the amp into overdrive, so your tone remains articulate no matter how hard you push it.

MODIFIED SPRING REVERB
This amp’s modified spring reverb offers the same luscious ambient sound you know and love, but with improved smoothness to dial in your sound at any volume.


CELESTION SPEAKER
Hailing from the U.K., Celestion speakers are acclaimed worldwide for their distinctly rock ‘n’ roll flavor, with a more modern sound and utterly classic roar when pushed.


LIGHTLY AGED GRILLE CLOTH
The Hot Rod Deluxe IV features the classic Fender look of sparkling silver grille cloth, lightly aged to give it even more mojo.


LIGHTWEIGHT PINE CABINET
Lightweight, yet strong, pine was used to craft Fender amps in the 1950s and ’60s, making for more resonant and more “musical” speaker cabinets.


IVORY POINTER KNOBS
In a nod to our illustrious past, we added ivory pointer knobs, an original-era design element.

SPECS

ELECTRONICS

• Voltage 230V UK
• Wattage 40 Watts
• Controls Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
• Channels Three - Selectable (Normal, Drive and More Drive)
• Inputs Two - (1/4", Input 2 operates at -6dB)
• Speaker Jack Two 1/4" Parallel (Internal and External)
• Effects Reverb
• Effects Loop 1/4" - (Preamp Out, Power Amp In)

HARDWARE

• Cabinet Material Lightweight Pine
• Amplifier Covering Black Textured Vinyl
• Grille Cloth Lightly-Aged Silver
• Amplifier Jewel Red Jewel
• Front Panel Black
• Handle Molded Plastic Strap with Nickel-Plated Caps

MISCELLANEOUS

• Legal Notice WARNING: Cancer and Reproductive Harm

SPEAKERS

• Speakers One - 12" Celestion® A-Type
• Total Impedance 8 ohms

TUBES

• Preamp Tubes 3 x 12AX7
• Power Tubes 2 x 6L6
• Rectifier Solid State

ACCESSORIES

• Footswitch 2-Button 3-Function (Channel Select, Drive/More Drive), P/N: 0994062000 (Included)
• Included Accessories Includes two-button footswitch and fitted cover
• Recommended Cover P/N: 0050696000, Hot Rod Deluxe™/Blues Deluxe™, Black

MEASUREMENTS

• Amp Height 18.75" (47.6 cm)
• Amp Depth 10.5" (26.7 cm)
• Amp Width 23.5" (59.7 cm)
• Amp Weight 41 lbs. (18.59 kg)
